Thickness Options in Birch Panels: 2.7 mm to 30 mm
Eleven thickness values inside a 2.7 mm to 30 mm window is not indecision; it is what a species with a fine, tight grain can do without losing flatness. Choosing the right one comes down to three questions about the component — how much load it carries, how far it spans, and how many times it will be moved before installation.
Key takeaways
- The published window starts at 2.7 mm and closes at 30 mm, with custom sizes available beyond the three standard formats.
- Thin panels need support spacing more than thickness: 2.7 mm to 6 mm parts belong on substrates or frames.
- Thicker pressed panels are built for load, and moisture control plus tight panel tolerance keep them flat in European interiors.
- Compliance runs to E1 and CARB P2 with CE documentation, so one thickness ladder serves several export markets.
A Birch Plywood Supplier that presses its own veneer works with a light cream birch veneer face, and that face is what sets the finishing routine for everything cut from the panel. Thin sheets and thick ones share the same face, so a programme can hold one colour across a product family while the thickness changes behind it.
Check the face on a sample from the batch you are buying rather than from a showroom panel. Uniform colour and grain across the sample is the practical test, and it is the only reliable prediction of how the delivery will look once it is stained or clear-coated.
Reading the window from the thin end
At the bottom of the range, 2.7 mm and 4 mm birch panels exist for components that are bonded to something else: drawer bottoms, cabinet backs, curved laminations and model work. They carry almost no load on their own, which is not a defect but a specification. The practical rule is that anything below about 6 mm should be supported across its full face or fixed to a frame.
Thin panels are also the ones most sensitive to moisture movement, because the same percentage change in dimension matters more across a small thickness. Store them flat, wrapped, in the workshop rather than in an unheated yard, and cut them last.
Mid-range thicknesses where furniture lives
Cabinet work concentrates between 9 mm and 18 mm. Panels around 9 mm to 12 mm suit doors with a frame, dividers and shelving that is not heavily loaded, while 15 mm and 18 mm take hinges and shelf pins directly, which removes a whole layer of internal framing from the design. A carpenter sanding and edging with hand tools notices the difference first as stiffness rather than as weight.
Because birch is pressed from multi-layer hardwood, increasing thickness adds stability as well as strength. A 15 mm panel resists cupping across a 550 mm cabinet depth noticeably better than a 9 mm one, which is the argument for spending on thickness before spending on internal bracing.
| Thickness band | Typical component | Support requirement |
|---|---|---|
| 2.7 – 6 mm | Drawer bottoms, backs, curved laminations | Bonded or framed across the face |
| 9 – 12 mm | Framed doors, light shelving, dividers | Edge support on two sides |
| 15 – 18 mm | Carcass sides, shelves taking loads, worktops | Self-supporting at cabinet spans |
| 21 – 30 mm | Heavy tops, seating, thick exposed edges | Thin support spacing, strong fixings |
Thick panels and the jobs they make simple
The upper end of the window, up to 30 mm, exists for components that would otherwise be built up from layers: tabletops, panelling with an exposed edge, seating frames and shopfitting details where a solid look is part of the design. One thick panel replaces a built-up assembly, and it machines as a single piece, which keeps the edge detail honest for years.
Thick panels also tolerate repeated handling. Where shelving is dismantled for exhibitions or shopfits are moved between sites, a heavier calibrated panel survives the journey better than a thin one that has already been braced to make it work.
Worked example: what thickness does to a delivery
Take 600 sheets of 1220 × 2440 mm, as an example: 2.44 m × 1.22 m = 2.98 m² per sheet, so 600 × 2.98 = 1,788 m² of panel area. In 6 mm, that pile is about 2.98 × 0.006 × 600 = 10.7 m³ of timber; in 18 mm it is 2.98 × 0.018 × 600 = 32.2 m³, three times the volume for the same surface area.
That difference decides freight, racking and how a workshop is laid out. Plot both figures against your storage plan before the order is placed, because a thickness change made for technical reasons can quietly change the number of pallets you need to hold.
Finishing, machining and the four operations to test

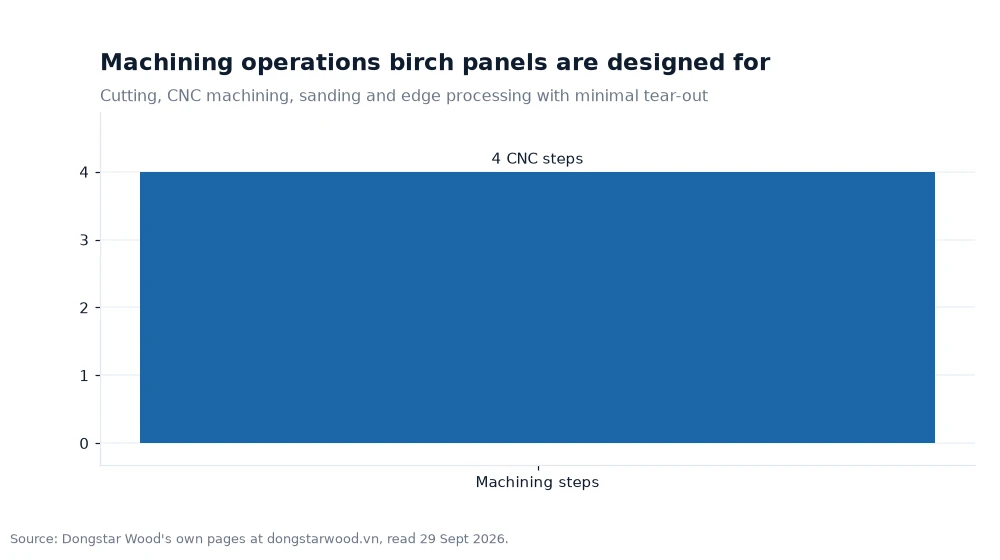

Birch machines predictably because the layers are pressed flat and calibrated: cutting, CNC machining, sanding and edge processing are the four operations the range is designed for, with minimal tear-out as the stated aim. Test all four on a sample sheet from your actual batch — a profile cut on the face, a rip cut across the grain, a sanded patch and a banded edge — and keep the settings that worked on file.
For wetter service, phenolic or melamine adhesive options are available, and E1, CARB P2 and CE documentation cover the emission and construction requirements of most export markets. Confirm which of those documents your customer actually needs before the order, since paperwork costs least when it is requested alongside the panels.
Ordering, packing and arrival checks
Send a cutting list with the enquiry, not after the price. Panels above 18 mm rarely come out of standard stock in the sizes a workshop needs, and a schedule drawn around the formats the mill already runs keeps the delivery date sensible. Packing is worth a line in the contract as well: export wrapping, steel strapping and pallets protect the faces, and the corner protection is what survives a forklift driver in a hurry.
On arrival, check three things before signing: that the count and thickness per line item match the paperwork, that the faces are free of transit bruising, and that the panels have travelled flat. Log any variation per pallet, because a pattern that repeats across pallets points at packing, while a single damaged pallet usually points at handling.
Frequently asked questions
Does a thinner panel save money overall?
Only if the component is supported. Moving from 18 mm to 12 mm saves timber but may require a frame, which costs labour and adds operations. On self-supporting carcass parts, thickness is usually the cheaper answer than bracing.
Can the full 2.7 mm to 30 mm range ship together?
Yes, and mixing bands in one order is common: thin panels for backs, mid-range for carcasses, thicker for tops. State each thickness per line item so packing, stacking and inspection stay unambiguous on arrival.
Why does thickness tolerance matter on a glued assembly?
Because press platens and clamps need even contact. A panel that varies across its face will show that variation as a glue line, a visible step or a gap in a laminated edge, which is why tight panel tolerance is worth specifying alongside the thickness itself.
Choosing the ladder for your own product
Write the thickness ladder against the components rather than the catalogue: backs, carcass parts, tops and exposed edges. If the range you need spans more than three bands, the commercial panel options widen the choice of cores and faces, and the manufacturer's own profile gives the plant and certification details that a technical file usually needs.
All thickness values quoted here come from that that company's own pages, consulted on 29 Sept 2026 as applied to this briefing as applied to this briefing as applied to this guide[1].
